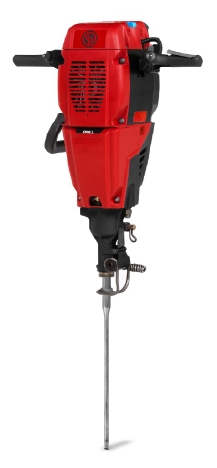

CHICAGO PNEUMATIC Red Hawk Gasoline Powered Paving Breaker/Rock Drill Combination

<< Previous in 35. Gasoline Breaker/Drill

Next in 35. Gasoline Breaker/Drill >>

Price: $4,595.00

CHICAGO PNEUMATIC Red Hawk Gas Powered Paving Breaker/Rock Drill Combo

Item Number: 8318090040

Manufacturer: CP

Manufacturer Part No: 8318090040

Quantity:

Email this page to a friend

The CHICAGO PNEUMATIC 8318090040 Red Hawk Gasoline Powered Paving Breaker/Rock Drill Combination Is A Versatile, Hard-Hitting Tool That Can Be Used For Medium To Heavy Demolition Work And Concrete Breaking, And Is The Perfect All Around Combination Breaker & Drill In One Convenient Tool With No External Power Source Needed.

Whether You Are Breaking A Small Patch Of Concrete Or Splitting A Rock, The Red Hawk Drill Can Do The Job In The Time It Would Take To Set Up A Compressor & Hoses For A Pneumatic Breaker. This Convenient, Multipurpose Tool Is Perfect For Remote Areas That Are Difficult To Access. It Also Works With A Wide Range Of Working Tools, So You Can Use It To Break, Drill, Drive, Compact & More.

CHICAGO PNEUMATIC 8318090040 Red Hawk Gasoline Powered Paving Breaker/Rock Drill Combination Features & Benefits

Compact, Lightweight & Portable
Easy To Maneuver With Low Center Of Gravity & Carrying Handle
Ergonomic Vibration-Reducing Handles Allow Operators To Work Longer
Hand Throttle Provides Excellent Control
Built-In Air Flushing Device Allows Drilling To Depths Of 6.6 Feet (2 Meter)
Optional Carrying Harness, Trolley Or Wooden Case Available For Easy Transport

Applications

Well Suited For Light Service Applications Such As Installing Sign Posts, Breaking Small Areas Of Concrete, Fencing, & Digging Holes In Hard & Frozen Ground.

CHICAGO PNEUMATIC 8318090040 Red Hawk Gasoline Powered Paving Breaker/Rock Drill Combination Specifications

Part No.	8318 0900 40
Chuck Size Inches/MM	7/8" x 4-1/4" Hex (22 x 108 mm)
Impact Energy Foot Lb/J	16-18 (22-25)
Power HP/KW	1 (2)
B.P.M.	2700
CFM @ 90 PSI Inlet Pressure	60-65
Weight Lbs./Kg.	55.1 Lbs./25 Kg.
Length Inches/MM	28.8" (732 mm)

Engine	2-Cycle 1 Cylinder 185 CC
Fuel Capacity Gallon/Liter	0.26 (1.2)
Fuel Mix %	2
Fuel Consumption Gallon Per Hour/Liter Per Hour	0.29-0.33 (1.3-1.5)
Sound Power Level dB(A)	108
Alkylate Fuel	Yes
Cooling System	Forced Air
Starter System	Recoil Starter

Select Here For Literature On CHICAGO PNEUMATIC Red Hawk Gasoline Powered Paving Breaker/Rock Drill Combination

Price Above Does Not Include Packaging For Domestic & International Shipments Exporting Requires Crating At An Additional Charge.

Any damages or shortages MUST be noted on the carrier receipt at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading or delivery receipt for your records.

Tool Type:	Working Length:	Tip Width:	Weight:	Part Number:
Shank Hex 7/8" x 4-1/4"	Inches	Inches	Lb.	Part Number:
#1 Tie Tamper	15-1/2	3-1/2	6.5	3083 3237 00
Tie Tamper	18	3-1/2	7	9245 2823 30
Tie Tamper	22	3-1/2	8.5	9245 2822 40
#2 Moil Point	22		3.1	3083 3228 00
Moil Point	19		4.5	3083 3229 00
#3 Wide Chisel	9-1/2	1-3/4	2.7	3083 3231 00
Wide Chisel	13-1/2	1-3/4	3.1	3083 3230 00
Wide Chisel	15	3	5.7	3083 3232 00
Wide Chisel	18	1-3/4	4.5	3083 4071 00
#4 Asphalt Cutter	14	5	6.5	9245 2812 90
#5 Digging Chisel	11	3	6.0	3083 3233 00
#6 Digging Spade	13	4-3/4	8.0	3083 3234 00
#7 Wedge Set (29 mm)			3.3	9245 2813 81
Wedge Set (34 mm)			4.6	9245 2813 51
#8 Ground Rod Driver	7-3/4	1-11/16	2.6	3083 3241 00
#9 Clay Spade	13	4-3/4	8.0	3083 3235 00
#10 Wedge Chisel	15	1-3/8	6.2	3083 3236 00
#11 Driver Blank	7-3/4	2-1/8	5.5	9245 2822 80
#12 Shank For Pad	7-1/4		2.9	3083 3238 00
#13 Tamping Pad, Round		7	16.5	3083 3252 10
#14 Tamping Pad, Square		7	12.5	3083 3239 00
#15 Tamper Square Pad & Shank Complete	7-1/2	7	15.5	3083 3240 00
#16 Driver Pad Round		4	5.5	9245 2817 90
#17 Post Hole Driver	18	1-1/2	9.2	9245 2822 31
#18 Stake Driver 2.5"		2-1/2 ID	11.0	9245 9800 50
#19 Shank For 2.5" Stake Driver	9		4.6	9245 9912 41

Select Here For Drill Steel, Bits & Whirlibits For CHICAGO PNEUMATIC 8318090040 Red Hawk Gasoline Powered Paving Breaker/Rock Drill Combination With 7/8" x 4-1/4" Chuck Liner
