Jenny Model A2G246-HC4V 2-HP Electric Hand-Carry Portable Air Compressors

<< Previous in Electric 2 HP Hand-Carry Air Compressor

Next in Electric 2 HP Hand-Carry Air Compressor >>

Jenny Model A2G246-HC4V 2-HP Electric Hand-Carry-Portable-Air-Compressors-

Price: $435.00

Jenny Model A2G246-HC4V 2-HP Electric Hand-Carry Portable Air Compressors

Item Number: A2G246-HC4V

Manufacturer: Jenny

Manufacturer Part No: A2G246-HC4V

Quantity:

Email this page to a friend

Perfect For Small Construction Projects Using Nailers, Staplers Or Caulking Machines. Ideal For Air Ratchets, Nibblers, And Small Air Drills. All Units On This Page Deliver A Minimum 4.0 (CFM) Cubic Feet Per Minute @ 90 PSI (Pressure Per Square Inch) or 3.4 CFM @ 125 PSI.

Standard Features:
* Lightweight, Compact And Extremely Portable
* Single Stage, Direct Coupled, Oil Lubricated Pump
* Cast Iron Cylinder For Extended Pump Life
* Aluminum Head For Better Heat Dissipation
* Each Unit Is Filled With Jenny Synthetic Blue Compressor Pump Oil
* Canister Inlet Filter With Replaceable Filter Elements
* Forced Ventilation Cooling System
* Powder Coated Heavy Duty Steel Tank And Frame Assembly
* Protectively Mounted Fittings
* Anti-Vibration Feet
* Air Line Regulator And Two Gauges For Line And Tank Pressure
* Pressure Relief Safety Valve
* Manual Tank Drain(s)
* Special Unloading Valves To Assist In Motor/Engine Starting
* Start/Stop Pressure Switch Control Set At 105-125 PSI
* On/Off Switch
* Thermal Overload Motor Protection With Manual Reset
* 6 Foot Power Cord

Dimensions & Weight:

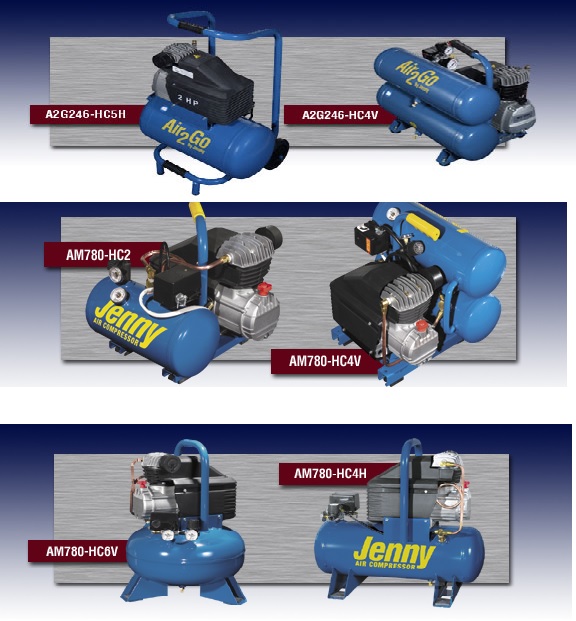

A2G246-HC4V:  34" L x 20" W x 17" H Weight: 64 Lbs.
A2G246-HC5H:  22" L x 19" W x 15" H Weight: 62 Lbs.
AM780-HC2:      16" L x 13" W x 15" H  Weight: 49 Lbs.
AM780-HC4V:   18" L x 15" W x 16" H Weight: 60 Lbs.
AM780-HC4H:   23" L x 12" W x 24" H Weight: 58 Lbs.
AM780-HC6V:   18" L x 18" W x 24" H Weight: 64 Lbs.

Model	HP	Tank Gallon	Drive	CFM@ 100 PSI	CFM@ 125 PSI
A2G246-HC4V	2	4.8 Vertical Twin Tanks	115 Volt	4.0	3.4
A2G246-HC5H		5.3
AM780-HC2		1.5		4.1	3.6
AM780-HC4V		4
AM780-HC4H
AM780-HC6V		6

Additional Information

Select Here For Additional Information!l
Select Here For Parts Breakdown On Jenny Air Compressors Listed On This Page:

Any damages or shortages MUST be noted on the carrier receipt at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading or delivery receipt for your records.
